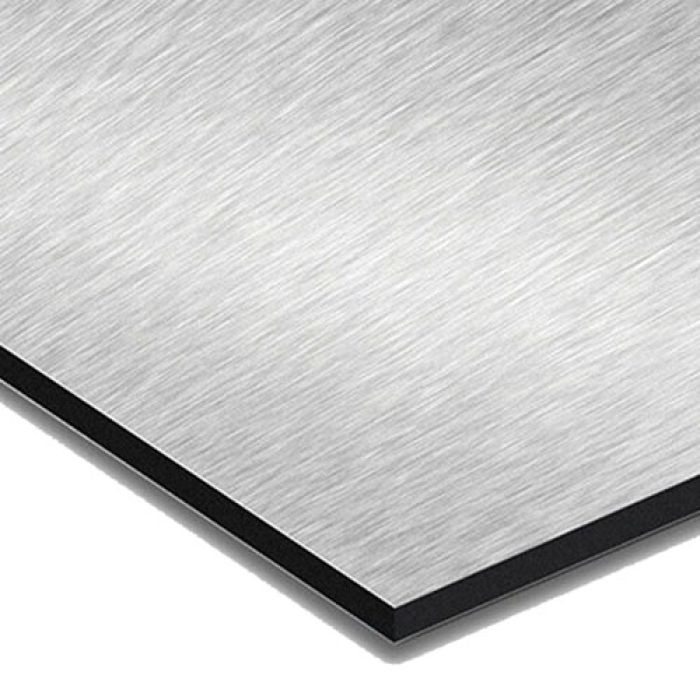

3mm x 2.44M x 1.22M SkyBond ACM Brushed Silver

SkyBond is a high-strength aluminium composite material featuring two aluminium sheets, sandwiching with a non-toxic low density polyethylene core. The outer sheets are 0.3mm aluminium, one with a mill finish and the other side and brushed finished.

Dimensions

• Length (mm) 2440

• Width (mm) 1250

• Thickness (mm) 3

• Weight (kg) 18.25

• Material ACM

• Skin Thickness (mm) 0.3

Core

• Polyethylene, Density g/cm³ 0.98

• Fire resistant EN 13501:B

• 3mm Aluminium composite panel EN 13501:B-s2-d0

• 4mm Aluminium composite panel EN 13501:B-s1-d0

Technical Properties

• Alloy on aluminum layers AA1100H18

• Tensile strength of aluminum N/mm² Rm 140

• Elongation % A50≥1

• Linear Thermal Expansion 1.14mm / m at 100°C temperature difference

• Peel Strength 180 deg. N/mm >5
