470mm Ø Square Cover & Frame - Underground Drainage

Our square plastic covers with frame are designed to cap the riser from a chamber base.  They are available to buy in 320mm or 470mm sizes. 110mm Inspection Chambers at 320mm are suitable for depths of 600mm, the 470mm inspection chambers are suitable for depths of 3000mm.

The invert (depth) for chamber bases and risers are:

470 BASE = 225mm

470 RISER = 235mm

Our 110mm Underground Drainage Systems are designed for use in gravity drainage and sewerage applications, up to a depth of 10M.  All of our drainage pipes and the majority of fittings are manufactured from Polyvinyl Chloride (PVC-U). The inspection chambers and gully grids are manufactured from polypropylene. Manufactured to BS EN 1401-1 BS4660 2000

• Application: Domestic Driveways

• Loading: 35kN

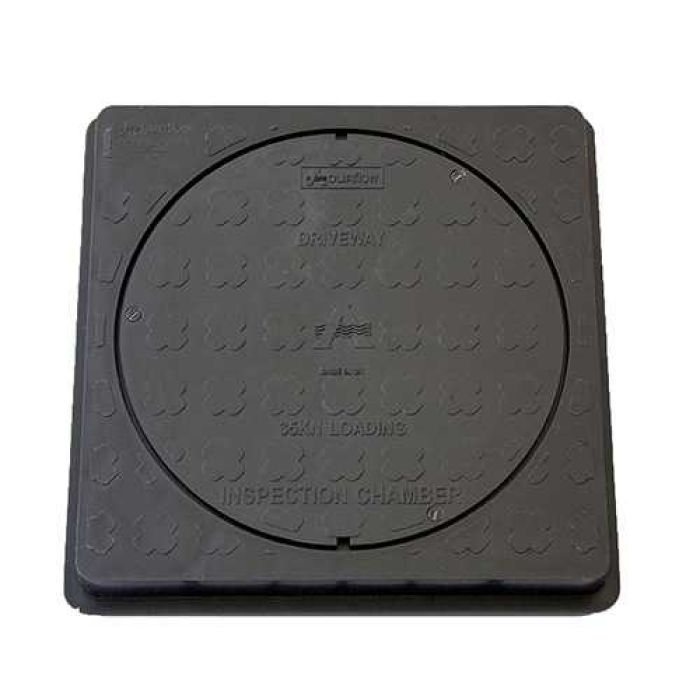

• Circular solid top cover in a square frame.

• Material: Black polypropylene.

• Locking: Dual locking (Cover screws to frame & frame screws to chamber top).

• Multi-Directional:Can be rotated to fit in with the pattern of the surface finish.

• Adjustable Level: Up to 15 degree tilt to accomodate unlevel ground.

• External Dimensions: 560 (L) x 560 (W) x 80 (H)

• Clear Opening: 450
